IECEX ATEX Certified Single Gas Detector with IP68 Protection

Product Categories
Shenzhen YuanTe Technology Co., Ltd. (Safegas)
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

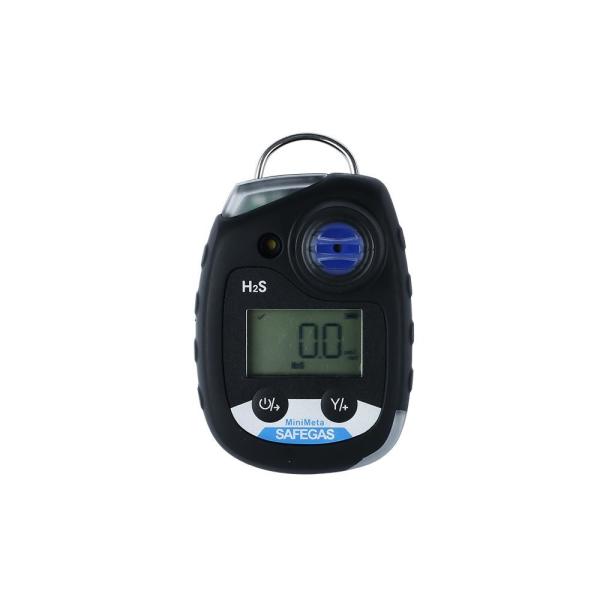

IECEX ATEX Certified Single Gas Detector with IP68 Protection

Brand Name : SAFEGAS

Model Number : MiniMeta

Certification : IECEX/ATEX/EMC/CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : ,T/T

Supply Ability : 100 pieces/day

Delivery Time : 3 work days

Packaging Details : Carton

Gas Detected : Specified according to application.

Measure range : Specified according to application.

Resolution : Specified according to application.

Principle : Electrochemical principle

Accuracy : ≤±2-5%FS (depending on the specific sensor)

Response time(T90) : 15-30s(depending on the specific sensor)

Unit : PPM, mg/m3, %VOL

Display : Gas name, concentration unit, measured value, battery power

Alarm mode : Sound, light, vibration alarm, high and low alarm values can be set by yourself

Alarm type : Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due

Power supply mode : 3.6V dry battery (non-rechargeable

Explosion-proof grade : ExiaIICT4Ga

Protection class : IP68

Executive standards : GB 12358-2006, GB 3836.1-2010,GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2

Working temperature : -20℃～55℃

Working humidity： : 0-95%RH (non-condensing)

Working air pressure： : 86~106kpa

Dimensions： : 90*60*33mm (length*width*thickness)

Weight： : 125g (With Clip)

Contact Now

IECEX ATEX Certified Single Gas Detector with IP68 Protection
Product Overview: MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system.
Product Advantages:
1. IP68 water- and dust-resistant case
2. Low power consumption with 2 years standby time, no need battery charge and calibration
3. With Single /multi unit docking station to perform daily bump test and calibration (Optional)
4. With event and data logging function (optional)
5. With self-test function, which can improve safety by automatic self-test
6. Small size, light weight and with back clip for easily carry
7. 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
8. Real time value, TWA, STEL, MAX, MIN multiple data display
Technical Parameters:
Gas Detected: Specified according to application.
Detection Principle: Diffusion
Measure range: Specified according to application.
Resolution: Specified according to application.
Accuracy: ≤±2-5%FS (depending on the specific sensor)
Response time(T90): 15-30s (depending on the specific sensor)
(Detection) Principle: Electrochemical principle
Unit: PPM, mg/m³, %VOL
Display: Gas name, concentration unit, measured value, battery power
Alarm mode: Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type: Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due
Power supply mode: 3.6V dry battery (non-rechargeable)
Explosion-proof grade: ExiaIICT4Ga
Protection class: IP68
Executive standards: GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature: -20℃~55℃
Working humidity: 0-95%RH (non-condensing)
Working air pressure: 86~106kpa
Dimensions: 90×60×33mm (length×width×thickness)
Weight: 125g (With Clip)
